Specification

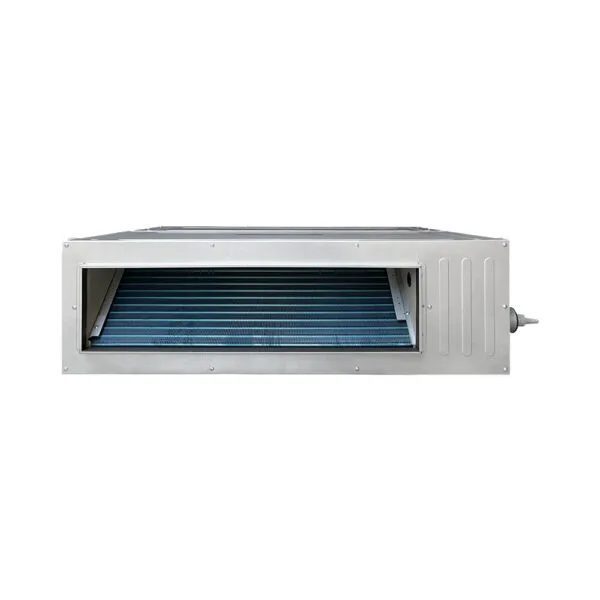

| Model | PGF-28 | ||
| Capacity | Cooling | kW | 2.8 |
| Heating | kW | 3.2 | |
| Power Supply | V/Ph/Hz | 220-240V-50Hz&208-230V~60Hz | |
| Power Consumption | W | 28 | |
| Air Volume(H/M/L) | m³/h | 450/350/200 | |
| Rate Current | Cooling | A | 0.2 |
| Heating | A | 0.2 | |
| Esp | Pa | 15/0~30 | |
| Sound Pressure Level(H/M/L) | dB(A) | 30/25/22 | |
| Connecting Pipe | Liquid | mm | ф6.35 |
| Gas | mm | ф9.52 | |
| Drain Pipe | External Dia. | mm | ф25 |
| Thickness | mm | 2.5 | |
| Dimension(WxDxh) | Outline | mm | 710x462x200 |
| Package | mm | 1008x568x275 | |
| Net Weight/Gross Weight | kg | 18.5/23.5 | |
| Loading Quantity | 40'GP | unit | 386 |
| 40'HQ | unit | 430 | |
